電線対基盤接続(WTB)コネクタ
2.5-6.5mm pitch

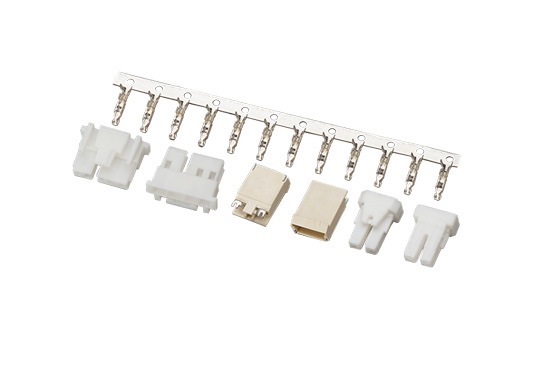

TJC54&TJC57&TJC58 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

技术参数(SPECIFICATIONS)
适用线规(Applicable wires):AWG#28~AWG#24
适应基板厚度(Applicable PC board thickness):0.8~1.6 mm
温度范围(Temperature range):-25℃~85℃
额定电压(Voltage rating):750V AC/DC
额定电流(Current rating):3A
接触电阻(Contact resistance):≤0.01Ω
绝缘电阻(Insulation resistance):≥1000MΩ
耐压(Withstand voltage):(Space2.5mm) 1500V AC/minute,(Space6.5mm) 2500V AC/minute
