线对板连接器
1.0mm pitch

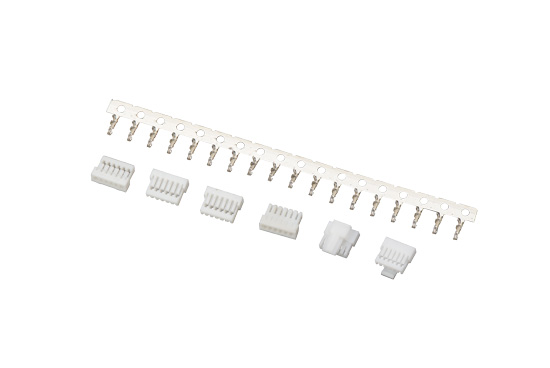

TJC10020 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规(Applicable wires):AWG#30~AWG#28
适应基板厚度(Applicable PC board thickness):0.8~1.6 mm
温度范围(Temperature range):-40℃~105℃
额定电压(Voltage rating):125V AC/DC
额定电流(Current rating):1A
接触电阻(Contact resistance):≤0.02Ω
绝缘电阻(Insulation resistance):≥100MΩ
耐压(Withstand voltage):500V AC/minute
认证(STANDARDS):UL E200881
