线对板连接器
2.0mm pitch

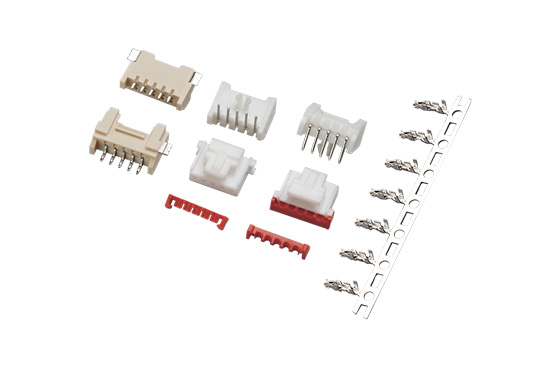

TJC20046 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规(Applicable wires):AWG#28~AWG#22 (UL 1007)
温度范围(Temperature range):-25℃~85℃
额定电压(Voltage rating):250V AC/DC
额定电流(Current rating):3A
接触电阻(Contact resistance):≤10mΩ
绝缘电阻(Insulation resistance):≥1000MΩ
耐电压(Withstand voltage):800V AC/minute
对配插簧(Matched Contact):TJC20085 terminal
认证(Standards):UL E200881
