FPC/FFC连接器
0.3mm pitch

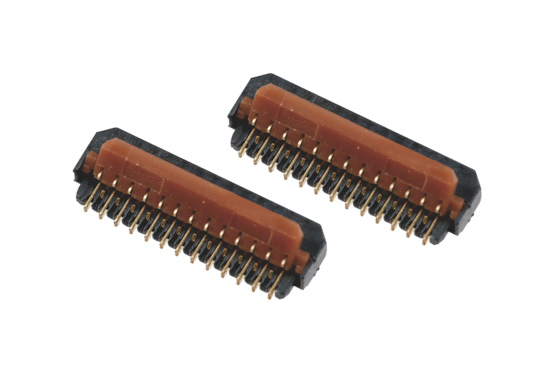

3013 系列型条形连接器 Series Connector

技术参数( SPECIFICATIONS )

适用FPC软板(Useable FPC Board range):Thickness=0.2mm
适应基板厚度(Applicable PC board thickness):0.8~1.2 mm
温度范围(Temperature range):-20℃~85℃
额定电压(Voltage rating):30V AC/DC
额定电流(Current rating):0.2A max.
绝缘电阻(Insulation resistance):≥50MΩ
耐压(Withstand voltage):90V AC/minute
